Combined Cycle Gas Turbines (CCGT): A Deep Dive into Efficiency and Innovation

Combined Cycle Gas Turbines (CCGT)

When it comes to modern power generation, Combined Cycle Gas Turbines (CCGT) stand out as a pinnacle of efficiency and engineering ingenuity.

These systems are revolutionizing how we produce electricity, blending the power of gas and steam turbines to maximize output while minimizing environmental impact.

Whether you’re an engineer, a plant manager, or simply curious about cutting-edge energy solutions, this article will take you through everything you need to know about CCGT technology—from its core principles to real-world applications and advanced solutions like those offered by TURBIVAP.

Let’s explore the fascinating world of CCGT plants, breaking down their operation, benefits, challenges, and the latest technological updates that keep them at the forefront of the energy sector.

What is a Combined Cycle Gas Turbine (CCGT)?

A Combined Cycle Gas Turbine (CCGT) is an advanced power generation system that integrates two thermodynamic cycles—the Brayton cycle (gas turbine) and the Rankine cycle (steam turbine)—to produce electricity with exceptional efficiency.

Unlike traditional single-cycle plants, which rely solely on a gas turbine or steam turbine, CCGT technology captures waste heat from the gas turbine exhaust and uses it to generate additional power via a steam turbine.

This dual-cycle approach can achieve thermal efficiencies of up to 60-64%, far surpassing the 33-43% efficiency of simple-cycle gas turbines.

At its core, a CCGT plant consists of a gas turbine, a heat recovery steam generator (HRSG), and a steam turbine, all working in harmony.

The gas turbine burns fuel (typically natural gas) to produce electricity, while the HRSG recovers the exhaust heat to create steam, which then drives the steam turbine for additional power generation.

This synergy makes CCGT systems a preferred choice for large-scale power plants aiming to optimize fuel use and reduce greenhouse gas emissions.

How Does a Combined Cycle Gas Turbine Work?

The operation of a Combined Cycle Gas Turbine is a marvel of thermodynamic efficiency. Here’s a step-by-step breakdown of how it functions:

Gas Turbine Operation (Brayton Cycle):
Air is compressed in the gas turbine’s compressor to a high pressure (typically 8-16 pressure ratio). This compressed air mixes with fuel in the combustion chamber, where it ignites, producing hot, high-pressure gases (up to 1,700°C). These gases expand through the turbine, spinning its blades to drive a generator and produce electricity. The exhaust gases, still hot at around 500-600°C, exit the turbine.

Heat Recovery Steam Generator (HRSG):
Instead of letting the exhaust heat dissipate, the CCGT system channels it into an HRSG. This sophisticated heat exchanger uses the residual heat to boil water and produce high-pressure steam. Depending on the plant design, the HRSG may operate at multiple pressure levels (e.g., triple-pressure with reheat) to maximize steam production efficiency.

Steam Turbine Operation (Rankine Cycle):
The steam from the HRSG flows into a steam turbine, where it expands and drives another generator to produce additional electricity. After expansion, the steam is condensed back into water and recycled into the HRSG, completing the cycle.

This combined cycle process ensures that nearly every bit of energy from the fuel is utilized, making CCGT plants a leader in energy efficiency.

Applicability of Combined Cycle Gas Turbines

The versatility of CCGT technology makes it applicable across various sectors. Here’s where it shines:

Large-Scale Power Generation:
Onshore CCGT plants are widely used for baseload power, providing a stable electricity supply to grids. Their high efficiency (up to 64% in optimal conditions) and lower CO2 emissions (around 0.34 tonnes/MWh compared to 0.52 tonnes/MWh for open-cycle gas turbines) make them ideal for utilities transitioning to cleaner energy.

Offshore Installations:
Offshore oil and gas platforms, use CCGT systems to power operations with efficiencies around 50%. These installations benefit from reduced fuel consumption in space-constrained environments.

Industrial Combined Heat and Power (CHP):
In industries requiring both electricity and heat (e.g., chemical plants), CCGT plants can operate in CHP mode, achieving overall efficiencies up to 90% by supplying steam for heating processes alongside power generation.

From urban power grids to remote offshore rigs, CCGT technology adapts to diverse energy demands with remarkable flexibility.

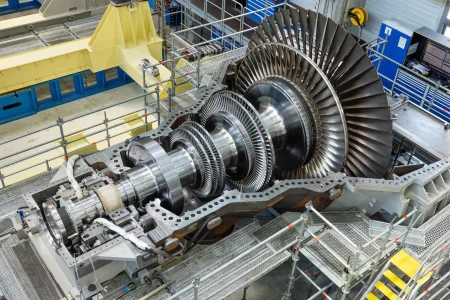

What is a Steam Turbine?

A steam turbines is a mechanical device that extracts thermal energy from pressurized steam and converts it into mechanical work.

This mechanical energy can then be used to drive electrical generators, pumps, or compressors. Steam turbines are widely regarded for their efficiency and adaptability, making them a cornerstone in power generation and industrial processes.

Steam turbines consist of a series of rotors and stators. Steam flows through these components, causing the rotor blades to spin and generate rotational energy.

Their versatility allows them to operate in various environments, from small-scale industrial applications to massive utility-scale power plants.

"A steam turbine is a mechanical device that extracts thermal energy from pressurized steam and converts it into mechanical work."

Principal Aspects of CCGT Systems

Several key aspects define Combined Cycle Gas Turbines and their performance:

Thermal Efficiency:
By integrating two cycles, CCGT plants achieve efficiencies of 50-64%, depending on turbine size, ambient conditions, and design (e.g., triple-pressure HRSG with reheat circuits). This is a significant leap over the 35-45% efficiency of open-cycle gas turbines (OCGT).

Fuel Flexibility:
While natural gas is the primary fuel, advancements like integrated gasification combined cycle (IGCC) allow CCGT systems to use coal or heavy oil, broadening their applicability.

Environmental Impact:
CCGT plants emit fewer pollutants (e.g., NOx, SOx) and CO2 compared to coal-fired plants, aligning with global decarbonization goals. However, they still produce emissions, driving research into carbon capture integration.

Operational Flexibility:
Gas turbines in CCGT setups offer rapid startup (as quick as 30 minutes), making them suitable for load-following to support intermittent renewables like wind and solar. However, efficiency drops at partial loads, a trade-off for this flexibility.

These aspects highlight why CCGT technology remains a cornerstone of modern energy systems.

Principle of Functioning: The Thermodynamics Behind CCGT

The Combined Cycle Gas Turbine operates on two fundamental thermodynamic cycles:

Brayton Cycle (Gas Turbine):
This cycle involves compression, combustion, and expansion. Air enters the compressor at ambient conditions (e.g., 15°C, 1 atm), is compressed to 8-16 times its initial pressure, and heated to 1,200-1,700°C during combustion. The resulting gas expands through the turbine, producing work. The efficiency of this cycle alone is typically 33-43%, limited by exhaust heat loss.
Rankine Cycle (Steam Turbine):
The HRSG captures the exhaust heat (500-600°C) to produce steam at pressures up to 120 bar. This steam expands through the steam turbine, generating additional work. The cycle’s efficiency depends on steam conditions (e.g., superheated steam at 540°C improves output).

The genius of CCGT technology lies in coupling these cycles. The HRSG acts as a bridge, converting waste heat into usable energy, pushing the overall system efficiency beyond what either cycle could achieve alone.

Advanced designs incorporate variable geometry (e.g., inlet guide vanes) and reheat circuits to optimize performance across load ranges.

Common Problems and Solutions in CCGT Systems

Despite their advantages, CCGT plants face challenges. Here’s a look at the most common issues and solutions:

Corrosion and Fatigue in HRSG Tubes:
- Problem: Offshore plants often experience tube failures due to poor water quality (e.g., high pH or oxygen levels) and maloperation, leading to corrosion and fatigue.
- Solution: Rigorous water treatment (e.g., deoxygenation, pH control) and adherence to operational procedures reduce risks. Advanced materials like stainless steel or Inconel enhance durability.

Efficiency Drop at Partial Load:
- Problem: Efficiency falls to 40-50% at partial loads, common when backing up renewables.
- Solution: Inlet guide vane control (IGVC) or fuel flow control (FFC) optimizes part-load performance. Simulation-based optimization, as studied by Haglind (2011), further refines strategies.

High Ambient Temperature Impact:
- Problem: In hot climates, air density decreases, reducing turbine output.
- Solution: Turbine Inlet Air Cooling (TIAC) technologies, like evaporative cooling or ice storage, boost performance by precooling combustion air.

Comparing Solutions:

Water Treatment vs. Material Upgrades: Water treatment is cost-effective but requires ongoing maintenance, while advanced materials offer longevity at a higher upfront cost.

IGVC vs. FFC: IGVC provides better regulation capacity, but FFC is simpler and cheaper for smaller plants.

TIAC Options: Evaporative cooling is affordable but less effective in humid climates; ice storage offers greater efficiency gains at higher capital costs.

Technological Updates Technological Updates in CCGT Systems

Recent advancements keep CCGT technology ahead of the curve:

Higher Turbine Inlet Temperatures: Research targeting 1,370°C (2,500°F) inlet temperatures (e.g., Siemens SGT5-8000H) pushes efficiencies to 60.75%.

Autonomous Operation: Mitsubishi’s T-Point 2 plant uses AI for fully autonomous CCGT management, reducing personnel needs and optimizing maintenance.

Carbon Capture Integration: Trials of integrated gasification combined cycle (IGCC) with carbon capture aim for near-zero emissions, expanding fuel options to coal and hydrogen.

These updates ensure CCGT plants remain relevant in a decarbonizing world.
